【 Anti-rain & Anti-fog Large Screen Rearview Mirror Monitor System for Trucks 】

Why choose our 12.3 Inch Electronic Mirror Monitor Camera System?

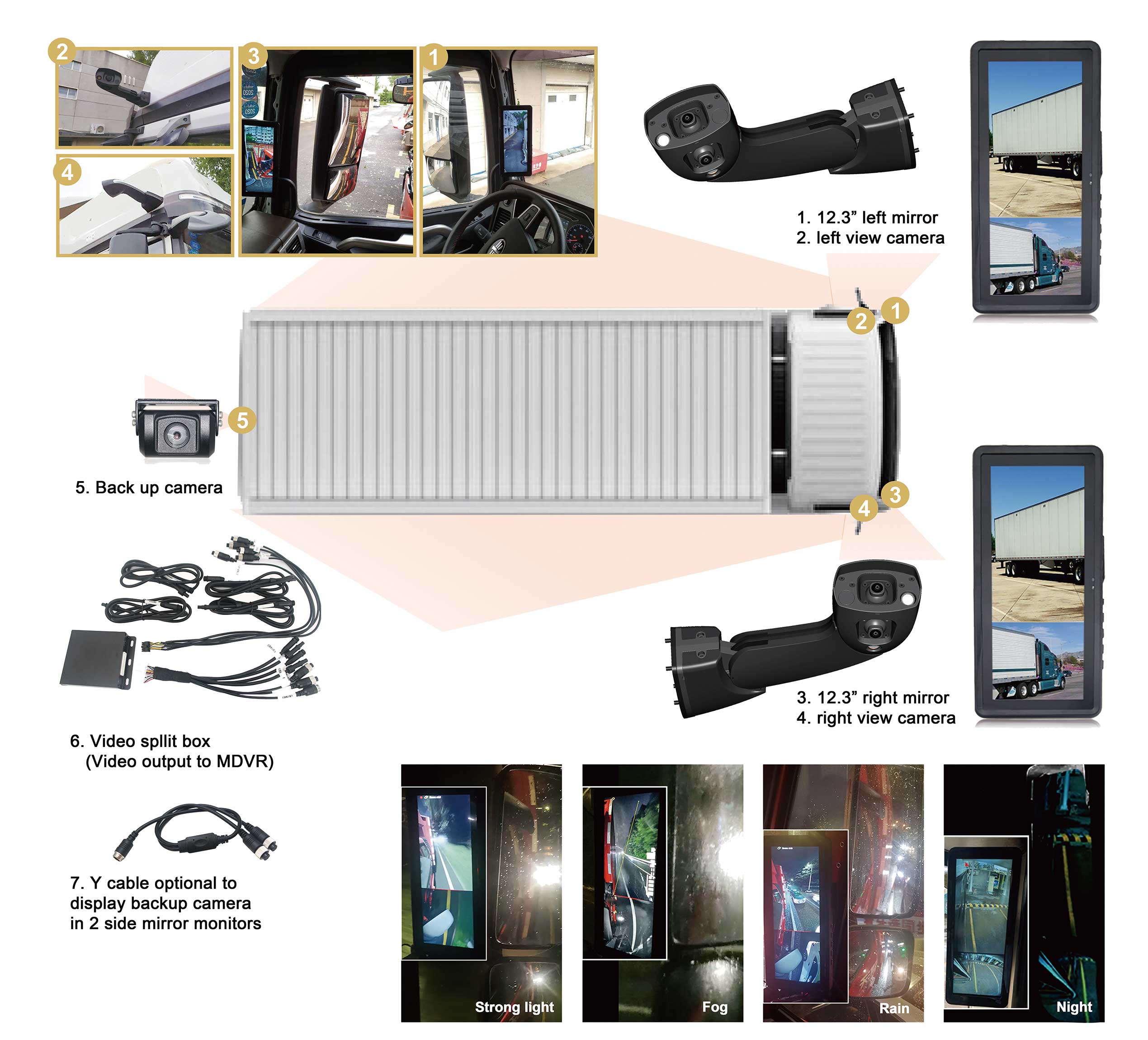

The vehicle-mounted 12.3-inch rearview mirror display integrates external dual-lens cameras, including left and right sides, to help eliminate blind spots caused by A-pillars, expand the field of view, and significantly reduce the blind area on the vehicle's sides. It also reduces interference from blind spots caused by turning or changing lanes. The system supports WDR/HDR imaging technology, enhancing images, correcting colors, and restoring the true driving environment under flash conditions, thereby reducing delay-free synchronous transmission of distant and close views. It has good penetration, is rainproof, fog-proof, waterproof, dustproof, and does not drip water, ensuring driving safety in adverse weather conditions.

The screen can automatically adjust the backlight according to the surrounding light, reducing power consumption. It provides better visibility of the rearview in backlight or other lighting conditions, reducing interference and discomfort caused by glare. The night vision function provides clearer and more distinct images during nighttime driving. Importantly, if you want to find accident evidence, you can view the video playback at any time. Our system can record in real-time, with dual WDR recording during both daytime and nighttime, supporting loop recording, and video file locking. The SD card capacity can reach up to 128GB. It can also integrate a backup camera, displaying real-time rearview images on the screen, simplifying reverse operations and reducing collision risks.

Features of HD 1080P 12.3 Inch Mirror Monitor:

◆ Big size 12.3 Inch, LVDS LCD digital panel, flat

◆ Screen view angle: Up, down, right, left over 170°

◆ Screen Resolution: 1920*720 Vertical Screen High resolution

◆ Support 2 Channels Split View Up and Down, up view zone for the distant view, down view zone for the nearby view

◆ Auto Dimming function, support brightness adjustment according to surroundings light condition

◆ With SD card slot, recording function optional

◆ Overvoltage, overcurrent protection and reversing polarity protection to extend the using time

Features of HD 1080P Dual Lens Camera:

◆ Compact Dual Lens Camera, including Left and Right Side

◆ Long Arm design, as the big size of the truck to avoid blind spot at most

◆ Waterproof Level IP69K

◆ Image sensor: 30fps, 1/3 inch CMOS

◆ Nearby Camera: 1080p/30fps, 120°(H)*65°(V)

◆ Distant Camera: 1080p/30fps, 85°(H)*50°(V)

◆ WDR/HDR, support image distortion correction

Features of HD 1080P Rear View Camera: (Optional)

◆ Black or White box, according to your vehicle

◆ PAL/NTSC system

◆ Supper Night Vision

◆ Universal for most type cars
