【Bus/coach safety vision solution for 12.3'' electronic mirror camera system】

Why choose our 12.3 Inch Electronic Mirror Monitor Camera System?

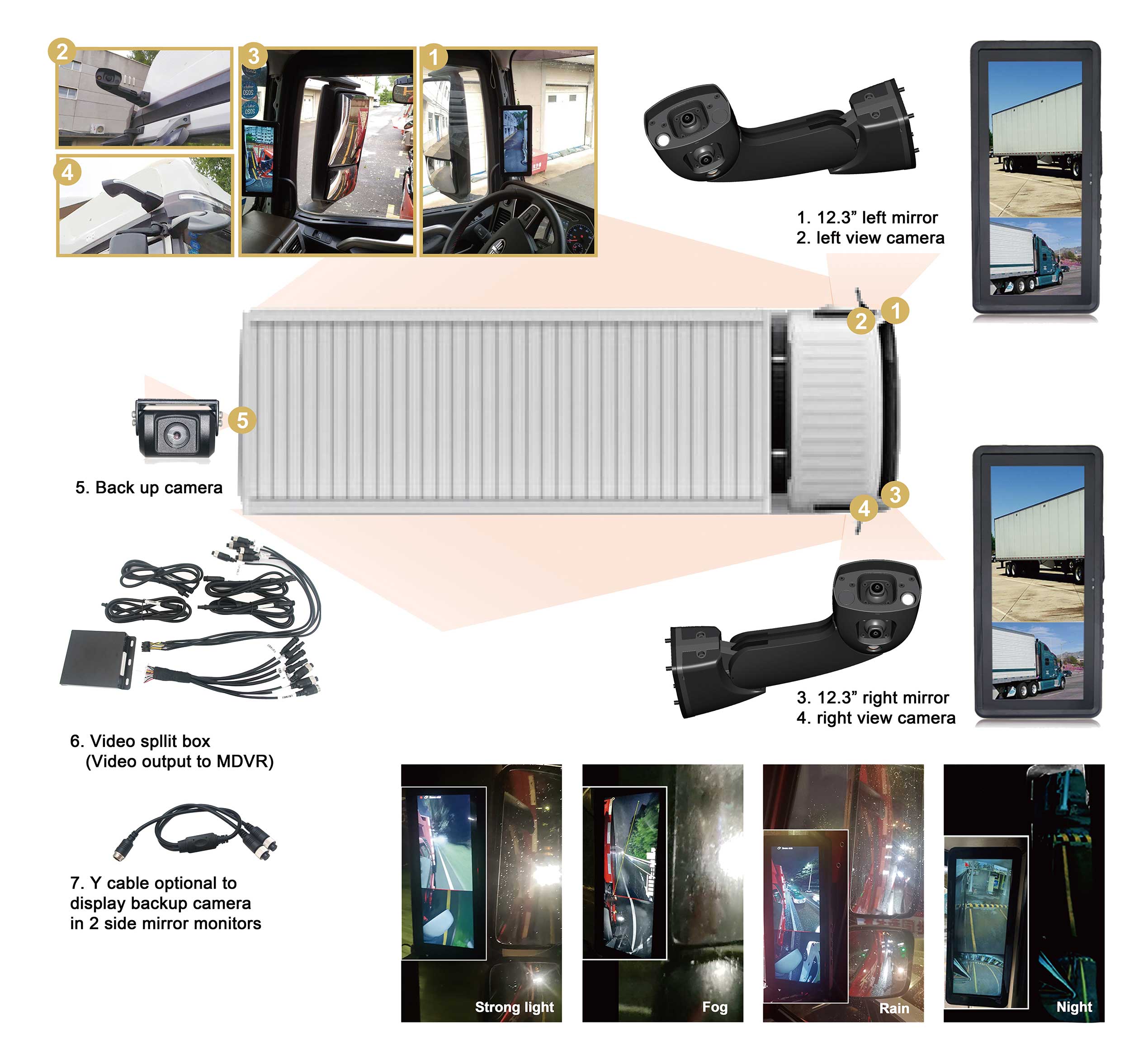

The in-car 12.3 inch Mirror monitor, integrated exterior dual lens camera, including the left and right side, helps to eliminate the A pillar blind spot area, expand vision, eliminate the blind spot area of the left and right side of the vehicle greatly. Also it can reduce the distraction of the blind spot area caused by steering or changing lanes. Support WDR/HDR imaging technology, enhance image, correct color to restore the real driving environment under flashing etc. Support distanct view, nearby view transmittering synchronously, no delay! Supper good penetrating, anti-rain, anti-fog, waterproof, dustproof, no water drop, gaurantee driving safety in bad weathers. The screen can automatically adapt the back light according to the surroundings light and reduce the power consumption. Importantly, If you want to find accident evidence, you can check the video playback at any time. Our system can record real time, Dual WDR recording at both day and night, loop recording, and support video file locking. The SD card capacity can be up to 128G.

Features of HD 1080P 12.3 Inch Mirror Monitor:

◆ Big size 12.3 Inch, LVDS LCD digital panel, flat

◆ Screen view angle: Up, down, right, left over 170°

◆ Screen Resolution: 1920*720 Vertical Screen High resolution

◆ Support 2 Channels Split View Up and Down, up view zone for the distant view, down view zone for the nearby view

◆ Auto Dimming function, support brightness adjustment according to surroundings light condition

◆ With SD card slot, recording function optional

◆ Overvoltage, overcurrent protection and reversing polarity protection to extend the using time

Features of HD 1080P Dual Lens Camera:

◆ Compact Dual Lens Camera, including Left and Right Side

◆ Long Arm design, as the big size of the truck to avoid blind spot at most

◆ Waterproof Level IP69K

◆ Image sensor: 30fps, 1/3 inch CMOS

◆ Nearby Camera: 1080p/30fps, 120°(H)*65°(V)

◆ Distant Camera: 1080p/30fps, 85°(H)*50°(V)

◆ WDR/HDR, support image distortion correction

Features of HD 1080P Rear View Camera: (Optional)

◆ Black or White box, according to your vehicle

◆ PAL/NTSC system

◆ Supper Night Vision

◆ Universal for most type cars
